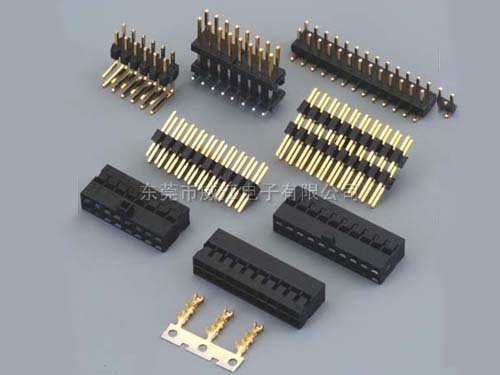

Pin connector is a common connection method in electronic products, which plays an extremely important role. The pin connector is composed of two parts, one is the female pin, also known as the base, and the other is the male pin, also known as the pin. In electronic devices, the role of the pin connector is to connect the circuit board and other electronic components in order to achieve signal transmission and data exchange.

First of all, the pin connector has good reliability. When the female and male pins are connected, a certain insertion and withdrawal force is generated to ensure the firmness of the connection. At the same time, the contact area of the pin connector is large, which can effectively reduce the current through the impedance, reduce the voltage reduction, and reduce the energy loss when connecting.

Secondly, the pin connector has a high transmission bandwidth. With the rapid development of information technology, the demand for data transmission is getting higher and higher. Pin connectors can provide relatively high bandwidth to meet the requirements of data transmission. In high-speed data transmission, the pin connector can maintain the stability of the signal and reduce the distortion and jitter of the signal.

In addition, the pin connector also has a high carrying capacity. With the rapid development of electronic devices, more and more components on the circuit board, current and power are also increasing. Pin connectors can withstand high current and power to ensure the normal operation of electronic devices. In industrial automation and other fields, pin connectors can also withstand the impact of harsh environments, such as high temperature, humidity and so on.

Finally, the pin connector is pluggable. During the commissioning, servicing and upgrading of electronic equipment, pin connectors simplify operation, facilitate troubleshooting and component replacement. The use of pin connectors can also reduce damage to the circuit board and improve the maintainability and upgradability of electronic devices.

In general, the pin connector is an important connection method in electronic equipment, which has the characteristics of reliability, transmission bandwidth, carrying capacity and pluggability. In the design and manufacturing process of electronic products, reasonable selection and use of pin connectors can improve the performance and reliability of electronic equipment. At the same time, electronic devices in different fields have different requirements for pin connectors, and it is necessary to select suitable pin connectors according to specific application scenarios.
