Your position  Home -> Products  ->  FPC Socket  ->  FFC socket

【Origin Pic】

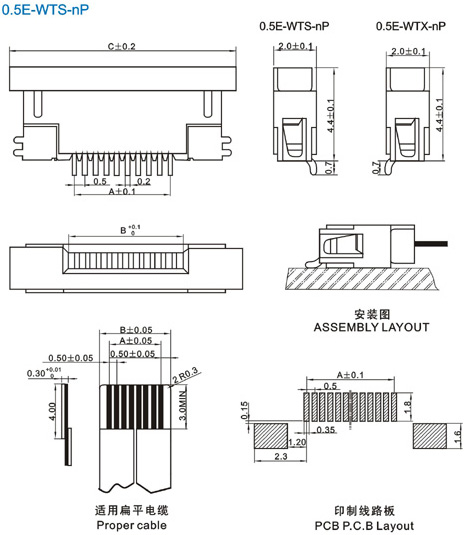

FFC socket




Technical parameters:

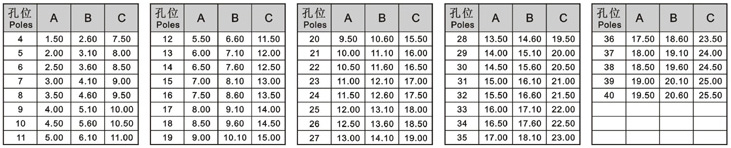

Number of poles: 4 to 40
Rated voltage: AC, DC, 200V (50HZ RMS)
Rated Current: 0.4A, AC, DC
Pressure value: 500V AC / minute
Working temperature: -25 ℃ ~ + 85 ℃
Insulation resistance: ≥500MΩ
Contact resistance: ≤0.02Ω
Single contact
Contacts
Material: Phosphor Bronze
Plastic body
Material: Nylon 46 UL94V-0
Packing:
Taping
Tube
Bag
